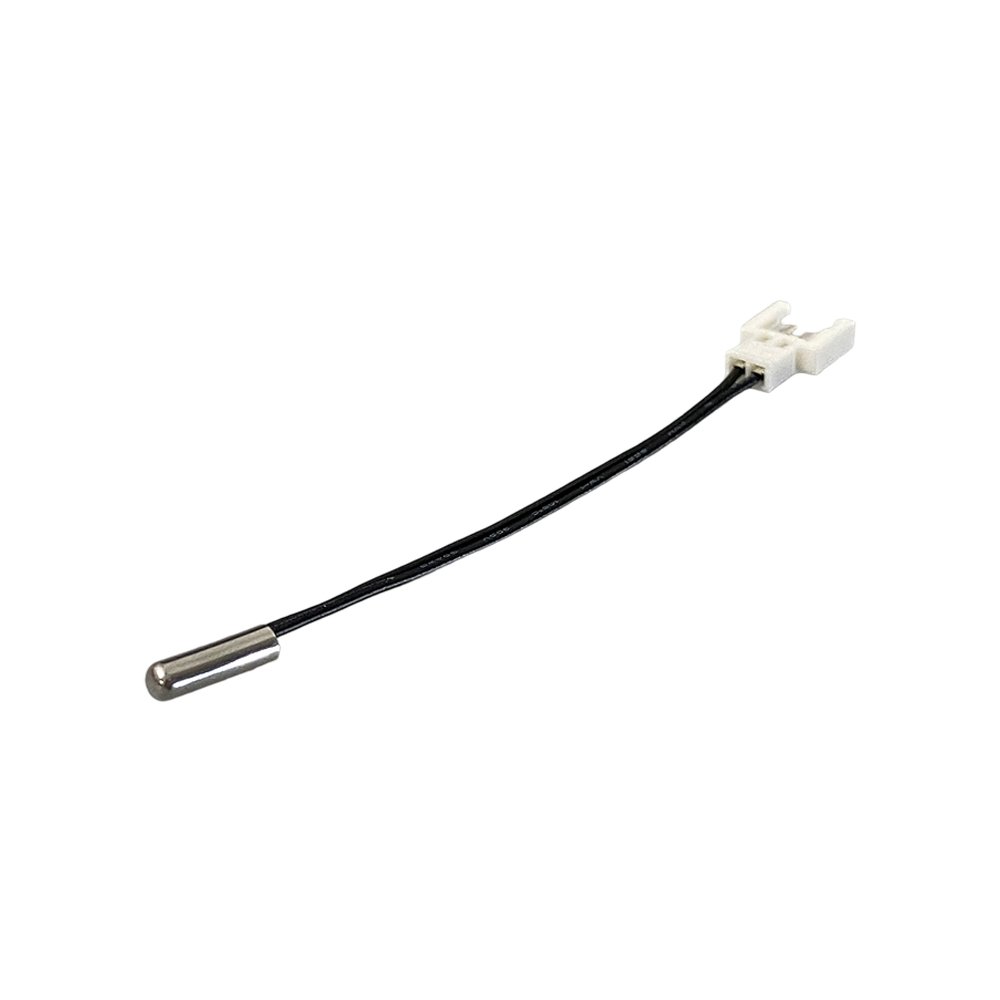

Cylindrical NTC Temperature Sensor CuNi Plated Large Terminal ZY-06

Product Features of CuNi Plated Cylindrical NTC Temperature Sensor with Large Terminal

Reliable Thermal Sensing Performance

The Copper Probe NTC Temperature Sensor is designed for accurate temperature measurement and stable thermal control performance in household appliances, HVAC systems and industrial electronic equipment. Built with a high-quality MF52A-10K3950 thermistor element, the sensor provides dependable resistance characteristics, fast response speed and consistent sensing accuracy under continuous operating conditions. Multiple resistance values including 5K, 10K, 50K and 100K are available, allowing flexible integration into different temperature monitoring applications.

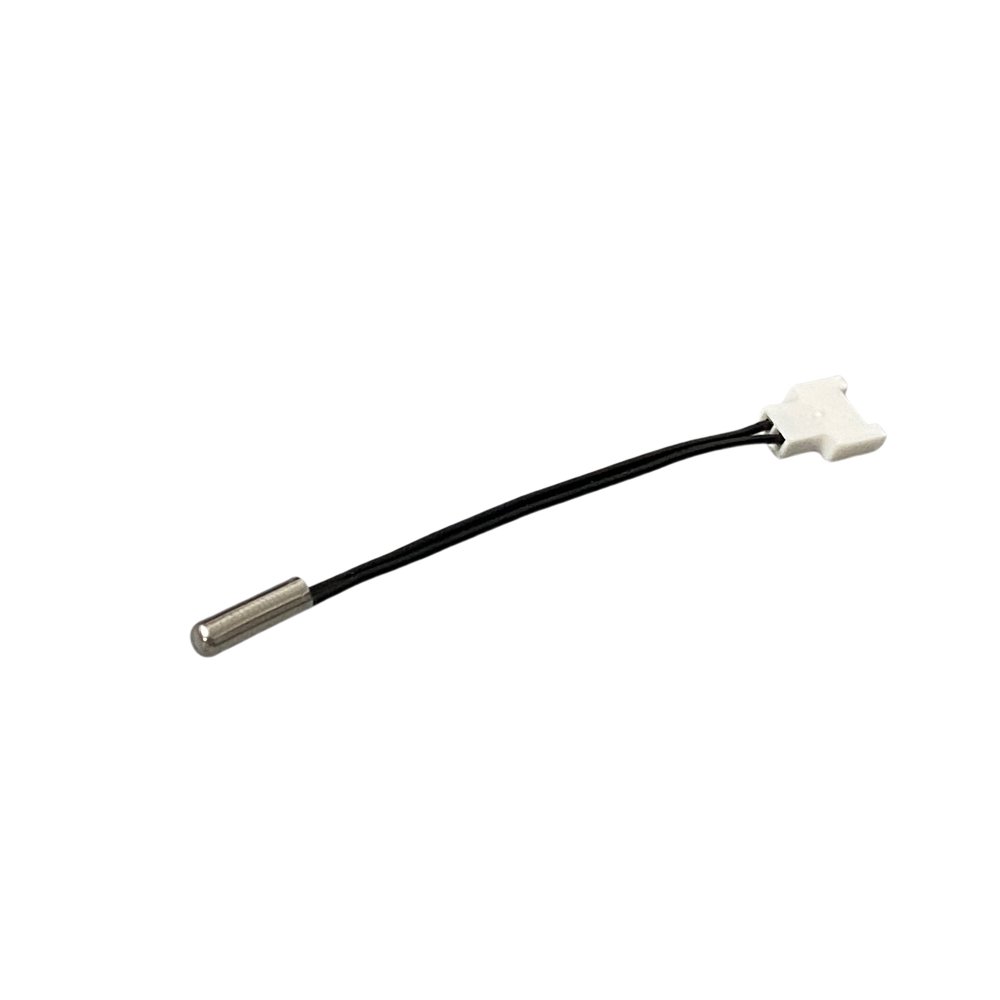

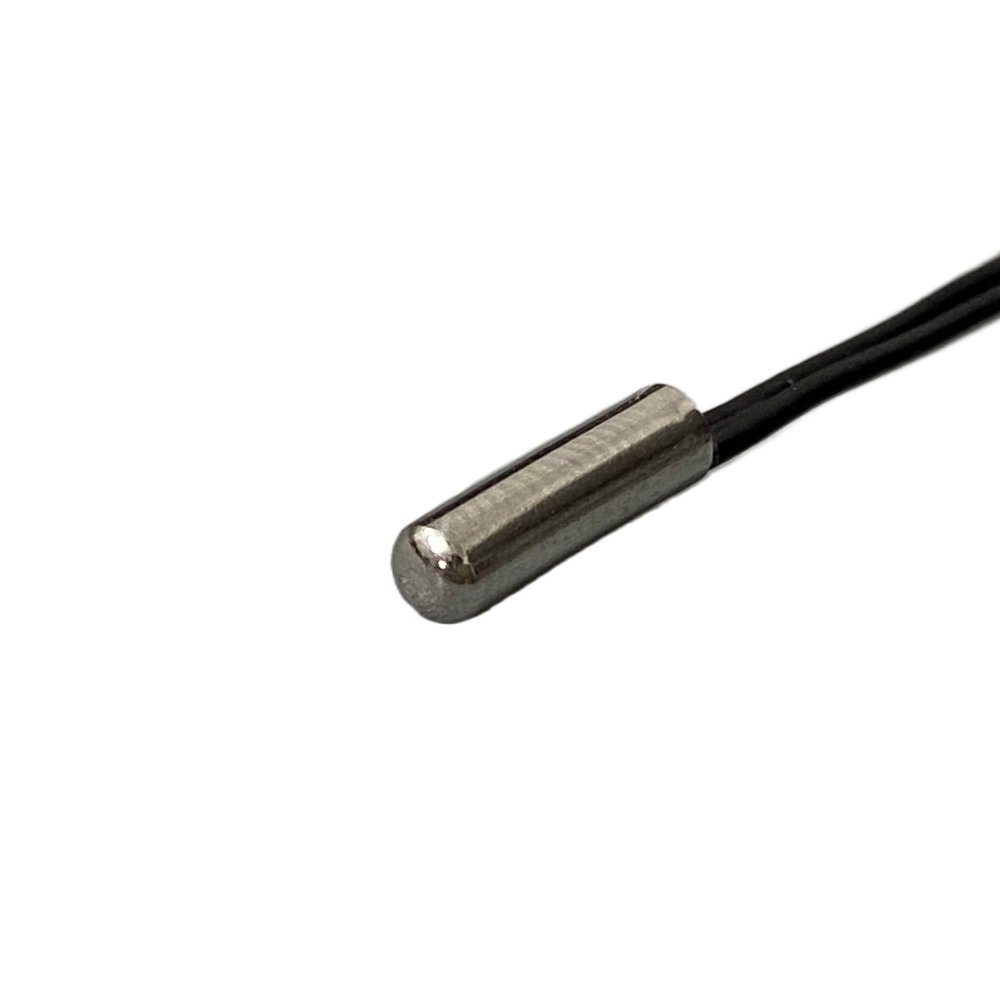

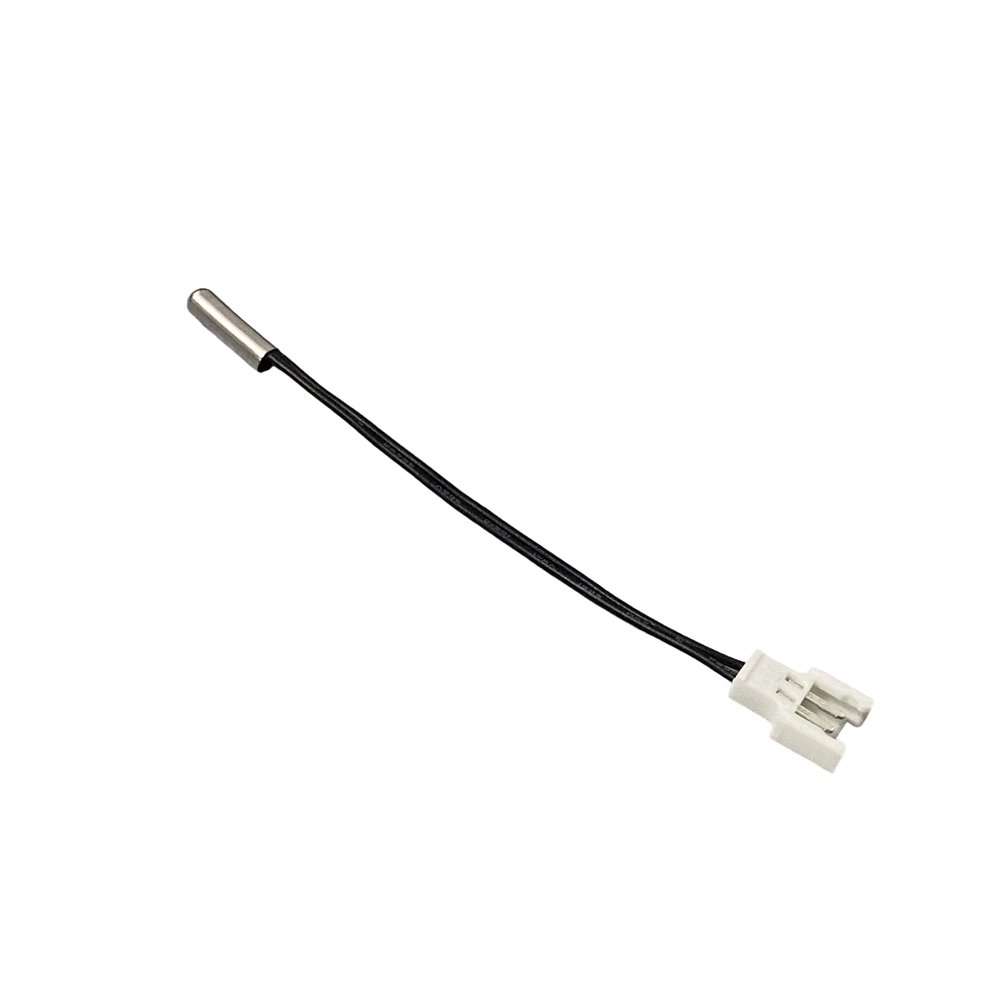

The sensor features a durable 5×25mm copper probe structure with optional nickel-plated surface treatment for improved corrosion resistance and enhanced thermal conductivity. Compared with conventional plastic sensing structures, the copper probe design supports faster heat transfer and more efficient temperature detection performance. The thermal time constant of approximately 3 seconds in still air helps the sensor respond rapidly to temperature fluctuations, improving overall control efficiency in electronic systems.

Black Epoxy Resin Encapsulation Structure

This temperature sensing component uses a black epoxy resin encapsulation structure to improve insulation reliability, moisture resistance and long-term operational durability. The epoxy sealing material helps protect the internal thermistor element from humidity, dust and external environmental influence during continuous operation. Combined with an IP68 protection rating, the sensor is suitable for applications requiring stable waterproof performance and dependable thermal sensing stability.

The encapsulated structure also supports better mechanical strength during installation and daily usage. The black resin surface creates a clean industrial appearance while helping maintain stable electrical insulation characteristics over extended service periods.

Convenient Installation and Wide Application Range

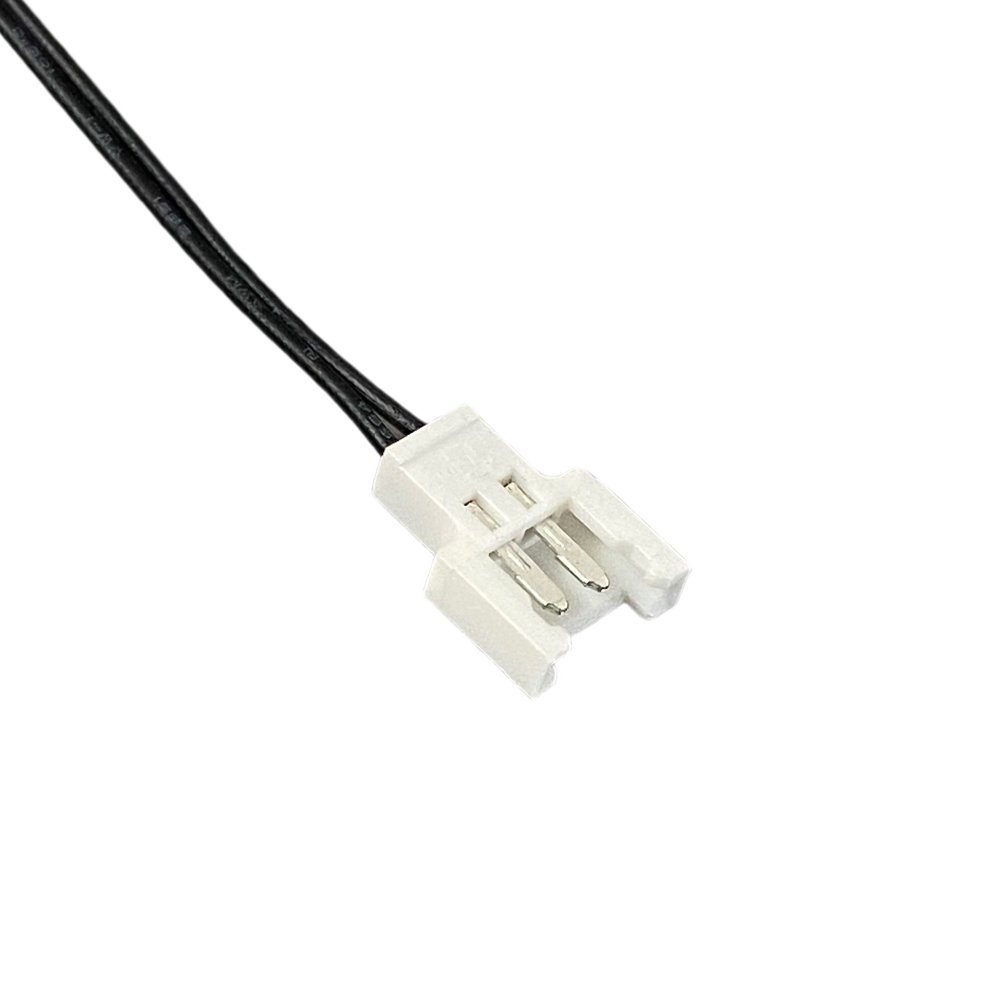

Equipped with UL2651 26AWG black parallel wire and an XH2.54 white terminal connector, the sensor supports convenient wiring connection and efficient installation. The in-line direct insertion mounting structure allows flexible integration into compact appliance systems and electronic control boards without requiring complicated assembly procedures.

This sensing solution is widely used in water heaters, induction cookers, air conditioning systems, refrigeration equipment, temperature controllers and household appliances requiring accurate thermal monitoring performance. As a RoHS compliant and UL recognized component, the product meets international environmental and quality standards while maintaining reliable long-term operational stability in demanding application environments.
