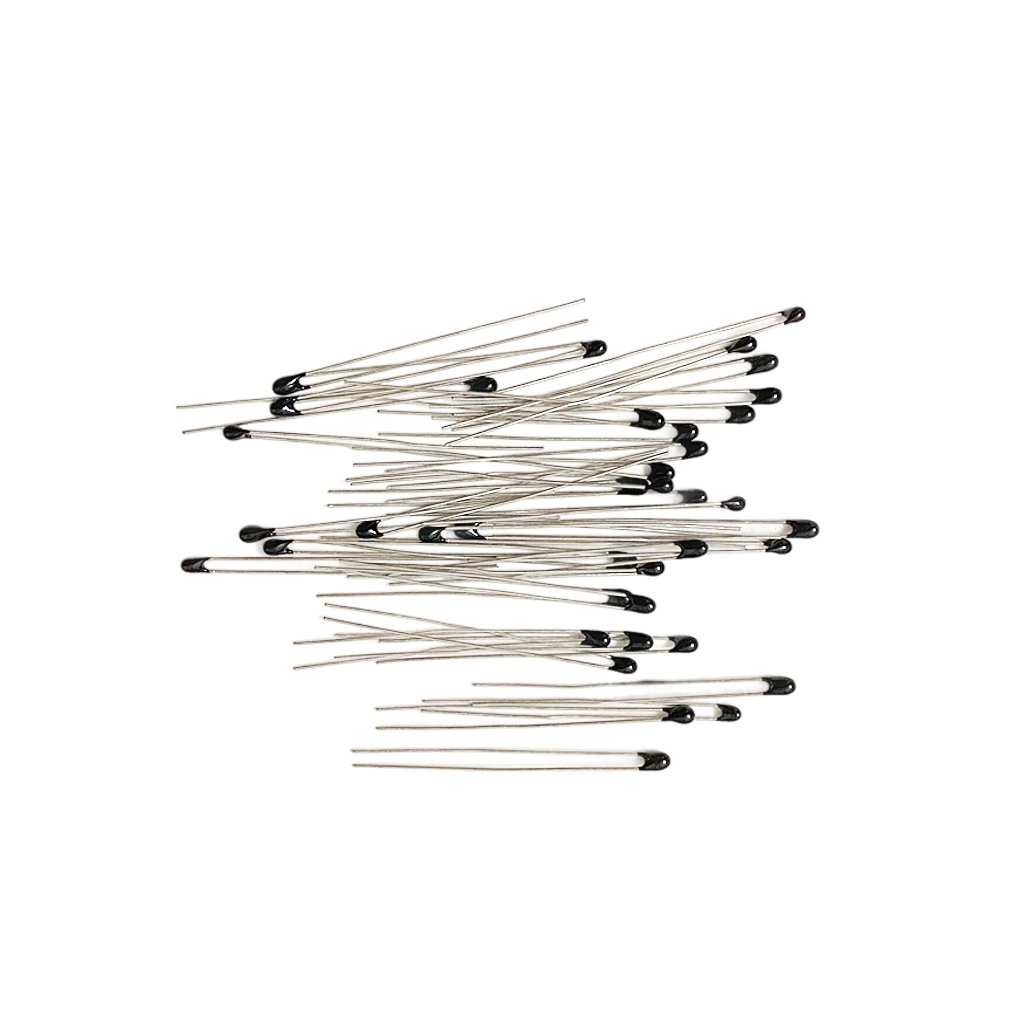

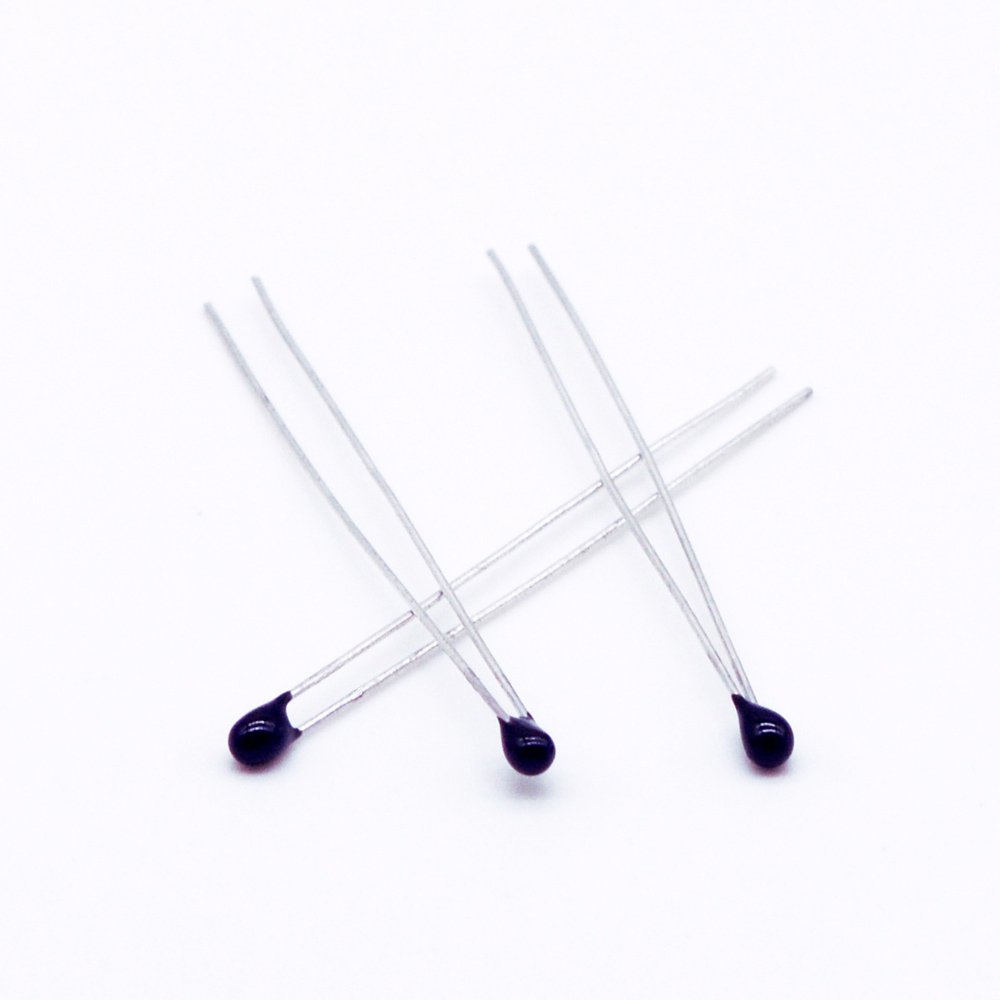

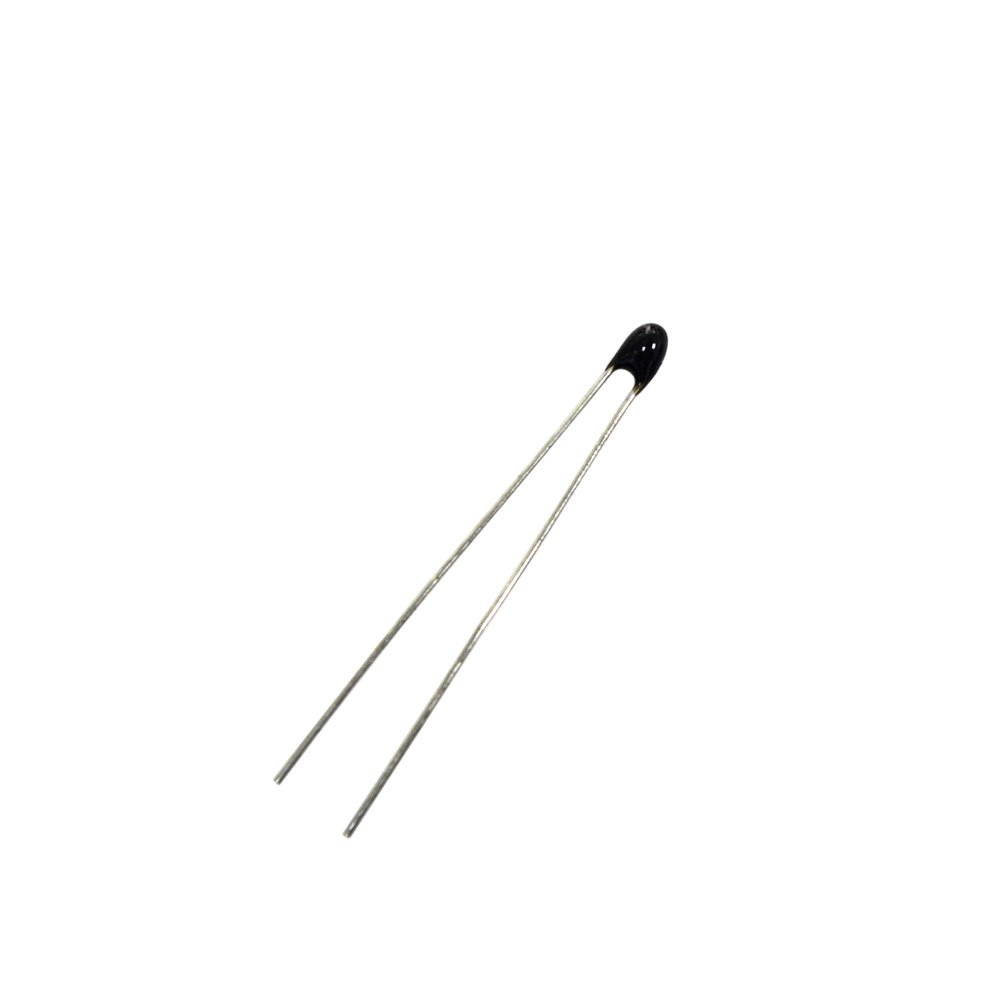

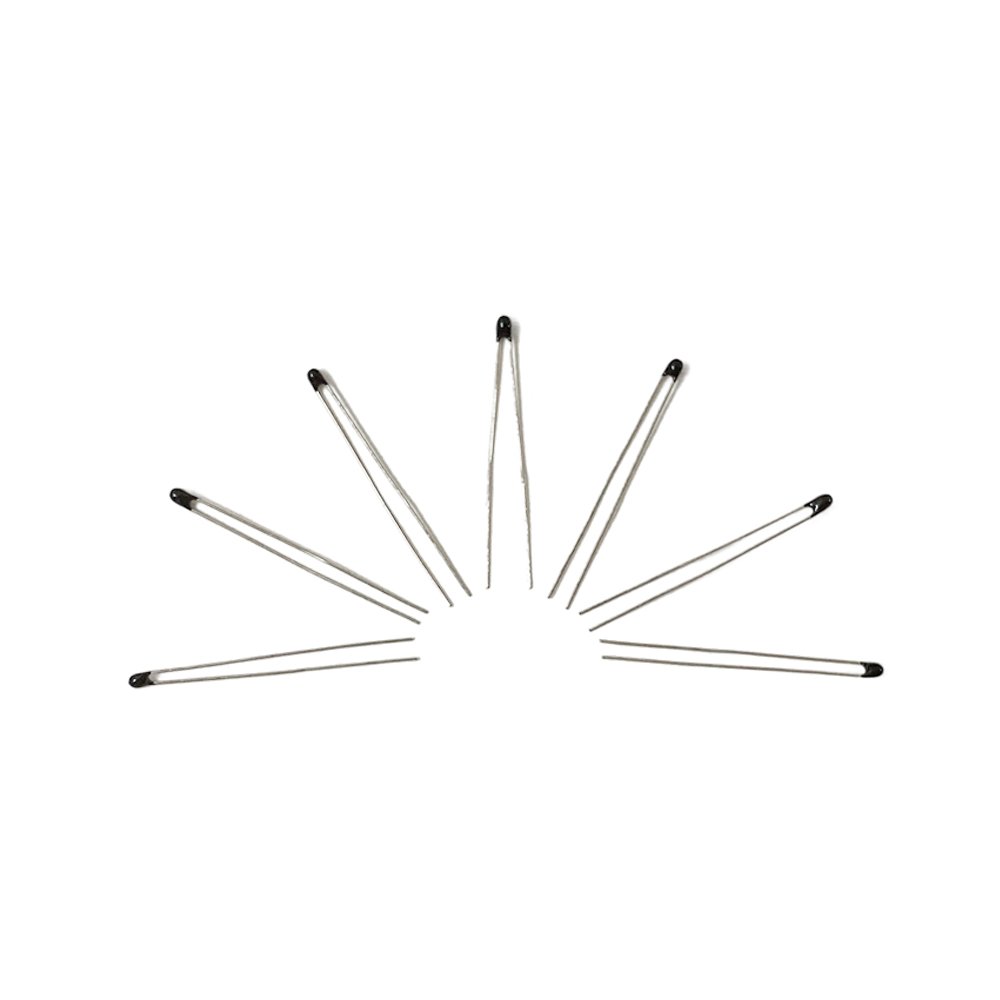

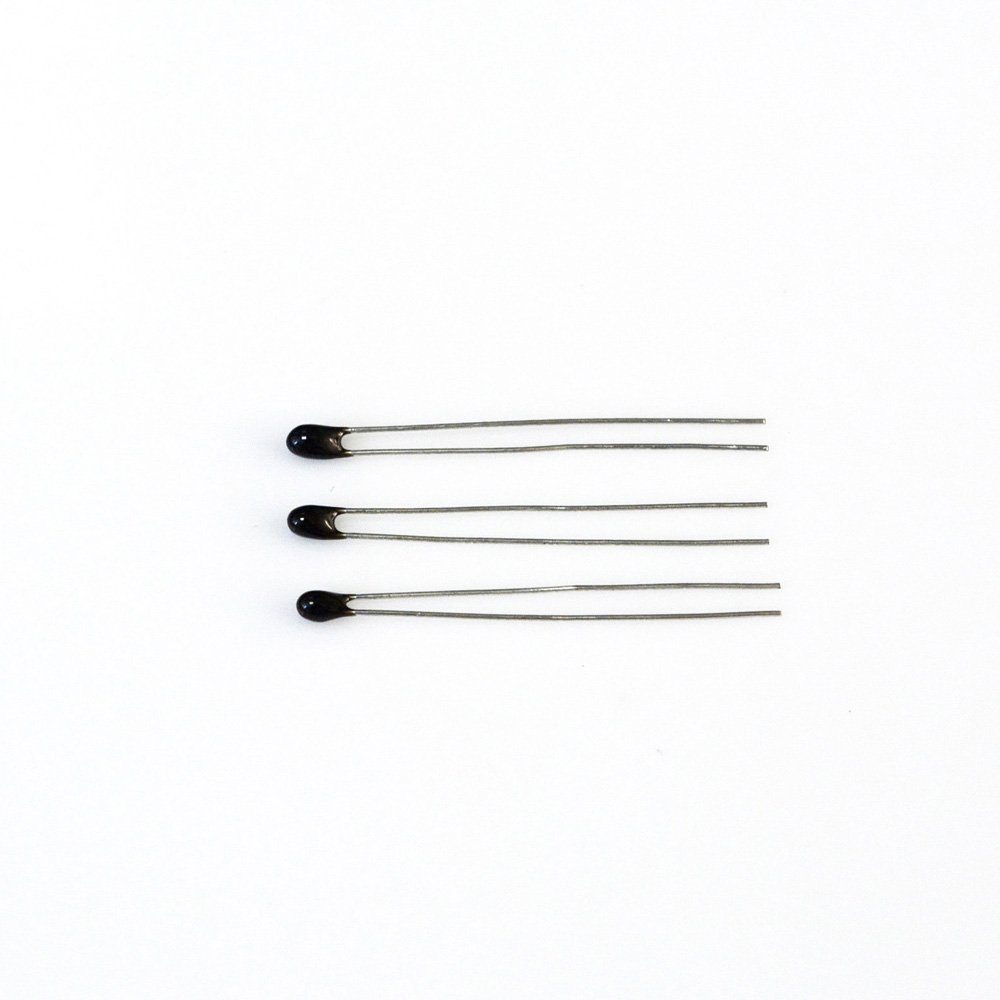

NTC Thermistor 10K 3950 MF52A Epoxy High Accuracy
Product Model: MF52 A-503 F 3950 F B
Code Structure Description
① MF52 Series
Bead-type precision NTC thermistor
② Lead Wire Type

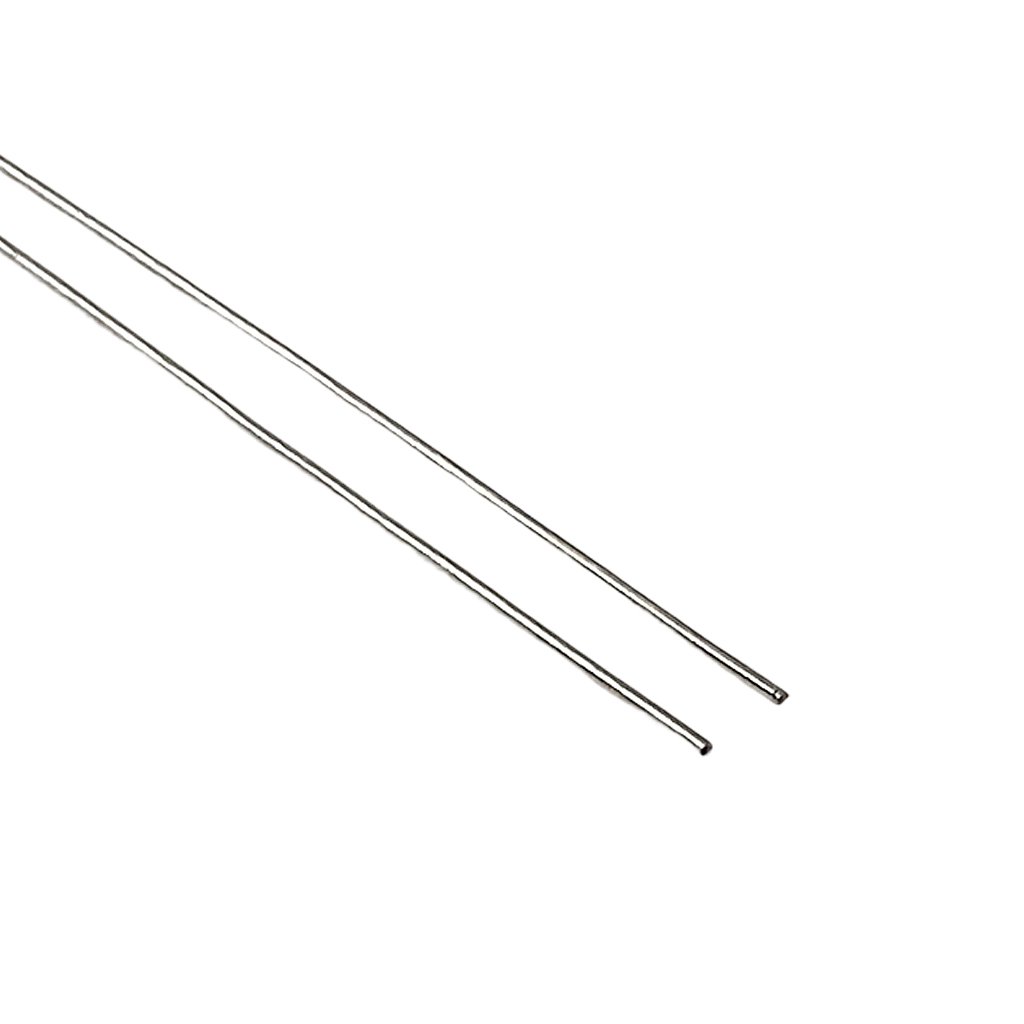

A – Tinned copper-clad steel wire (CP wire)
③ Nominal Resistance (R25)
503 – 50KΩ
103 – 10KΩ
④ Resistance Tolerance
F – ±1%
G – ±2%
H – ±3%
J – ±5%
K – ±10%
⑤ B Value
3950 – B3950
3380 – B3380
⑥ B Value Tolerance
F – ±1%
G – ±2%
⑦ B Value Category
A – 25/50°C
B – 25/85°C
Product Introduction
Product Features

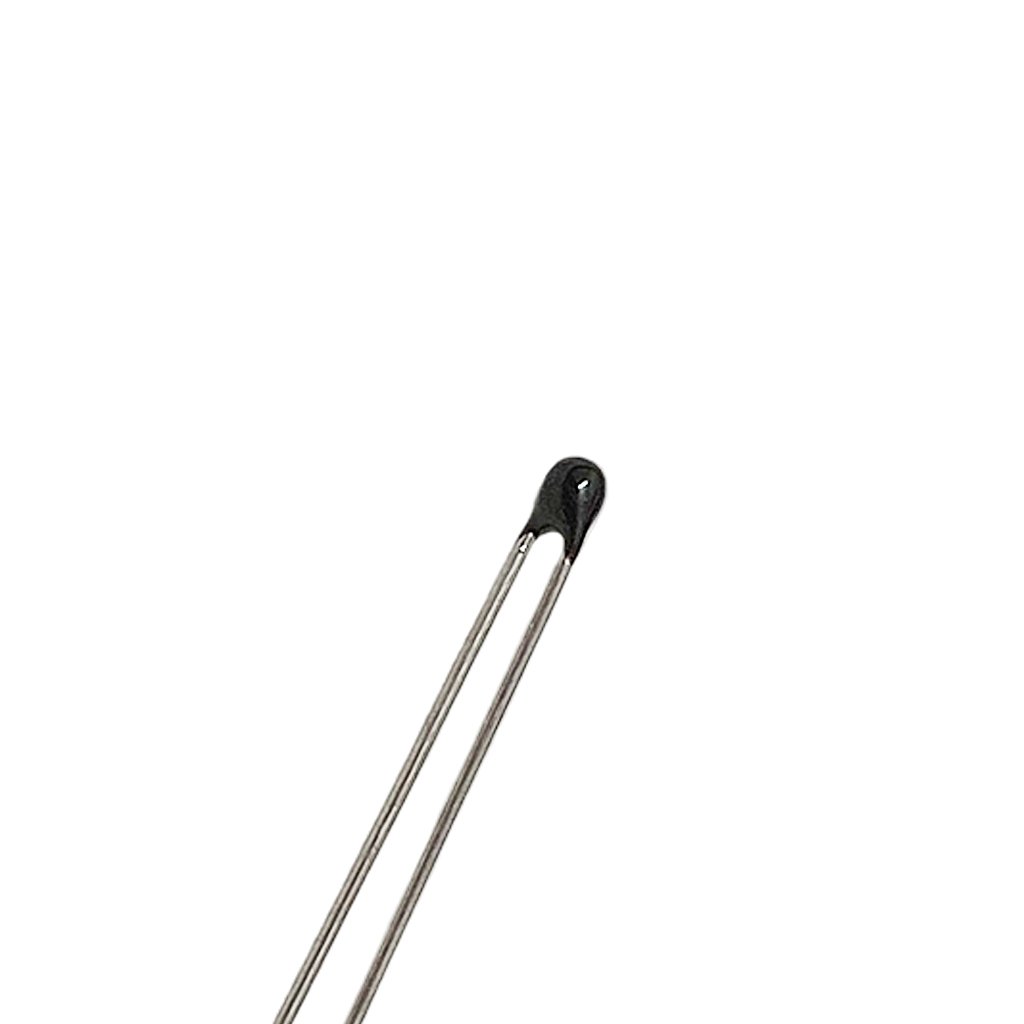

- MF52A series adopts radial CP wire with resin coating
- Wide resistance range: 0.1–500KΩ
- High accuracy of resistance value and B value
- Excellent temperature measurement accuracy
- Compact size with fast response time
- High reliability
- Long-term stable performance
- Operating temperature range: -40°C to +120°C
Additional Specifications
High-precision customizable options available:
10K, 20K, 50K, 100K
B values: 3950, 3435, 3470, 3380
Tolerance: ±1%, ±2%, ±3%, ±5%
NTC (Negative Temperature Coefficient) thermistor, MF52A type, epoxy resin coated, CP wire lead
Applications
- Electronic thermometers
- Medical instruments
- Household appliances such as air conditioners, refrigerators, freezers, soy milk makers, bread makers, and water dispensers
- Temperature control instruments
- Electronic gift products
- Automotive temperature measurement
- Electronic calendars
- Rechargeable battery packs and chargers
- LED power supplies
